Tryout Presses

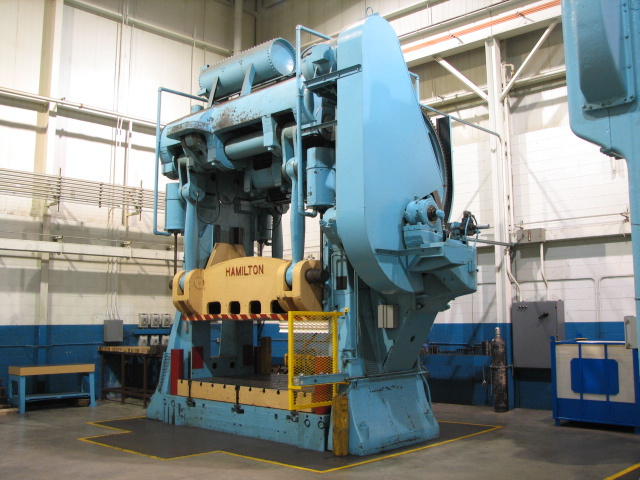

1000 Ton Four Point Press
- Hamilton Straight Side
- Serial No. 1381
- 180" x 90" Bolster
- 24" Stroke, 72" Shut Height
- Bed Adjustment 62", w/air cushion
- 36" Window
- Tonnage Monitor

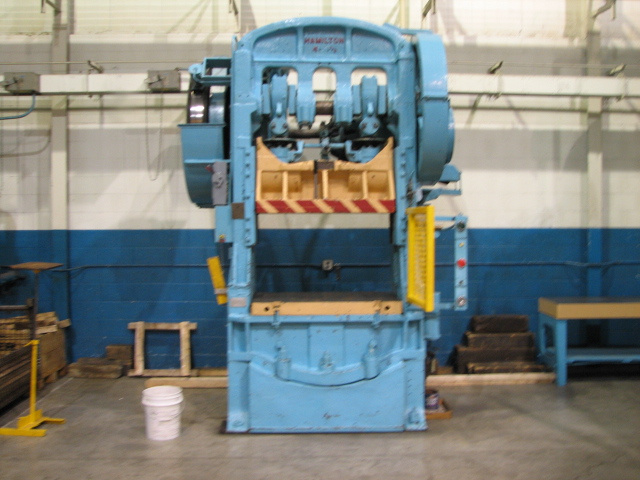

900 Ton Four Point Press:
- Hamilton Straight Side
- Serial No. 1305
- 124" x 80" Bolster
- 24" Stroke, 69" Shut Height
- Bed Adjustment 60", w/air cushion
- 24" Window
- Tonnage Monitor

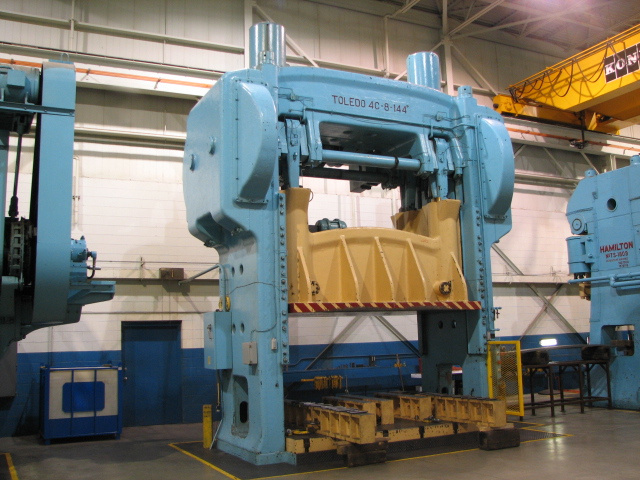

800 Ton Four Point Press
- Toledo Straight Side Double C
- Serial No. 27180
- 144" x 100" Bolster
- 30" Stroke, 54" Shut Height
- Ram Adjustment 24"
- Triple Disc Air Clutches
- (3) Air cushions, 175 ton w/12" stroke
- 29" Window
- Tonnage Monitor
400 Ton Four Point Press
- Double Crank
- Serial No. 23579
- 84" x 48" Bolster
- 12" Stroke, 32" Shut Height
- Ram Adjustment 24"
- Air Cushion, Air Clutch
- Air on Ram
- 10.75" Window
300 Ton Press
- Double Crank
- Serial No. 18799
- 60" x 42" Bolster
- 12" Stroke, 32" Shut Height
- Air cushions, air clutch
- Air on Ram
- 8.75" Window
150 Ton Press
- Double Crank
- Serial No. 722
- 48" x 33" Bolster
- 10" Stroke, 21" Shut Height
- Air cushions, air clutch
- 7.75" Window
